Broadcom P411W-32P - Diskkontroller

NVMe - lav profil - PCIe 4.0 x16
Ikke på lager
Produsent Brocade
Artnr 05-50054-00
  • Kontakt oss for pris Eks mva
Bookmark and Share
  • Informasjon
    • X16 PCIe Gen 4 Host Interconnect
    • Up to 8 x4, 16 x2, or 32 x1 NVMe SSD connect
    • SRIS and REFCLK support
    • SFF-9402 compliant connector pinout
    • Downstream port containment
    • Read tracking
    • Surprise Add and Remove
    • Synthetic Hierarchy generation
    • FRU Inventory support
    • Hardware Secure Boot
    • LED Management

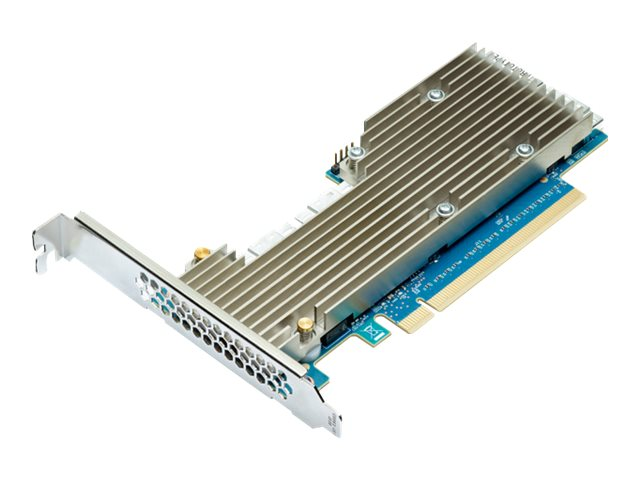

    The Broadcom P411W-32P is the industry's first fully managed Gen 4 NVMe switch adapter, providing enterprise class options for NVMe solid state drive (SSD) attach requirements. The P411W-32P leverages Broadcom's world-class board design, PEX88048 PCIe Gen 4 switch chip, and solid firmware expertise, to provide advanced features not available using traditional NVMe drive attach methods. Similar to Broadcom HBAs, the P411W-32P adapter is supplied with fully validated and supported firmware and standards based out of band manageability features. The P411W-32P switch adapter delivers several innovative features, including true surprise add and removal, Downstream Port Containment and Read Tracking, which can help the users avoid typical situations that could cause a kernel panic. The integrated management processor delivers added features, such as SES compatible LED control and BMC support.
